TRX400EX Rear Suspension Notes:

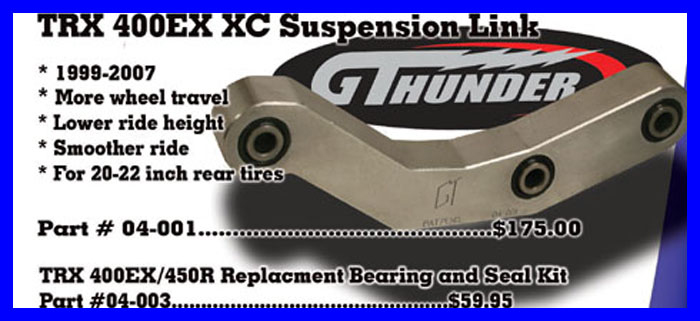

This Link is for several applications including XC racing with 20-inch tires.

Extended shock length needs to be 15.5 inches with 4 inches of actual shaft travel. For aftermarket shocks this may be as much as 4.25 inches of shaft to get the actual travel needed.

Suggested spring rates:



Link #04-001

Rider Weight                     Spring Rate

125#……………………….315#

150#……………………….332#

175#……………………….350#

200#……………………….365#

225#……………………….382#

250#……………………….400#



Note: For full travel and the best suspension action – the airbox needs to be raised ½ inch – the exhaust must be spaced out to provide the correct clearance needed – and the left side of the subframe needs to be modified to provide additional clearance for the sprocket at full up travel.







TRX400EX Rear Suspension Kit

Kit price includes revalving the rear shock, a new rear spring, and a new rear suspension link.

$345.00

Priced separately:

Link................................$175.00

Service rear shock..........$75.00

Revalve rear shock........$75.00

Rear spring......................$95.00




Part #04-001...............$175.00
