TRX450R Chain Adjustment

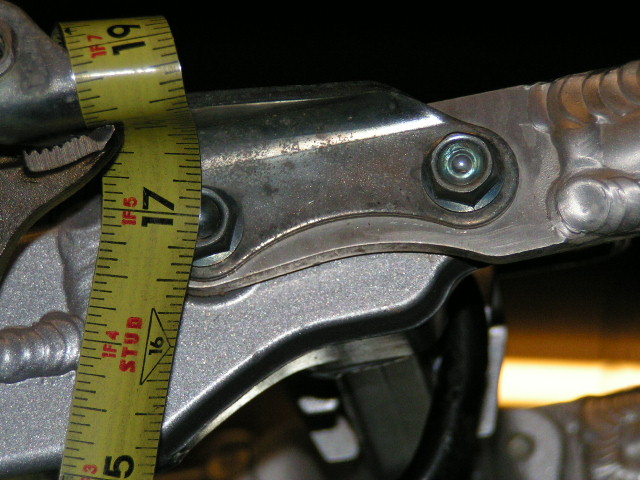

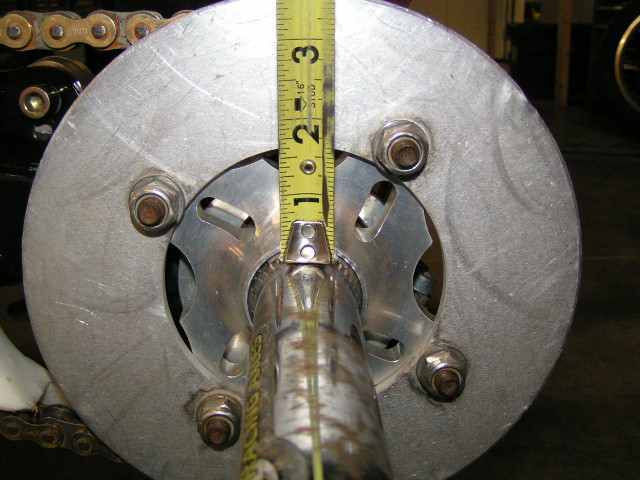

First compress the the rear suspension till the distance from the top of the axle on the left side is 17 inches from the center of the left front grab bar bolt as shown in the following photos. Then adjust the chain tight. How tight?? 10 lbs. of pressure to deflect 1/2 inch is fine.
