G T Thunder Rezy kit installation instructions

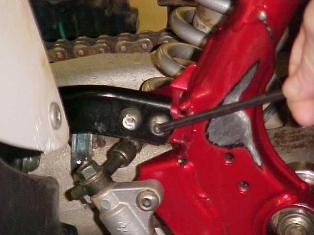

1. With a 5mm Allen wrench, carefully remove the existing right rear fender bracket bolts from the
frame.
2. Using a 6mm Allen wrench, install the new supplied bolts that are longer into the same holes.
Torque bolts to 18 ft lbs.
3. Install supplied bracket on the inside of the frame, onto the previously installed bolts using a 12mm
socket to tighten the supplied nuts to 16 ft lbs. The bracket needs to be installed ? angled in.
4. Remove hose from the rear brake reservoir, and remove the rear brake reservoir from its bracket.

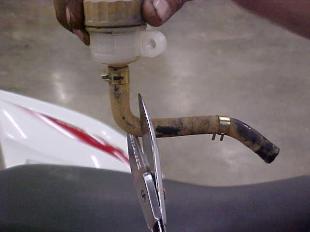

5. Cut 2 inches from the top of the reservoir hose.
6. Rotate hose nipple coming out of master cylinder clockwise 20 degrees.
7. Slide hose onto the reservoir nipple and the master cylinder nipple.

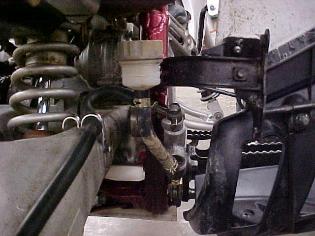

8. Bolt reservoir to supplied bracket using supplied nut and bolt.
9. Fill reservoir to specified level with brake fluid.
10. For photos of this installation ? go to www.gtthunder.com
